Main functions and applications
- Detection and classification of stationary and moving objects
- Monitoring the presence of objects or people in control areas
- Perimeter security and protection against unauthorized access
- Dangerous proximity monitoring and collision avoidance
- Assisting in traffic and when changing lanes
- Speed management and automatic emergency braking
- Automation of vehicle movement tasks
Benefits
Wide working area
Viewing angle of up to 120˚ with distances of up to 250m.
The entire field of view is available at all ranges simultaneously without splitting into beams or zones.
The entire field of view is available at all ranges simultaneously without splitting into beams or zones.
High angular resolution and high detection accuracy
Coordinate and velocity detection with high accuracy. Best-in-class angular resolution when comparing the performance of radar sensors for similar applications.
Unlimited number of observable objects
Get as much data as you need.
Reliability
Rugged enclosure and fairing, resistant to physical effects, with no moving parts, allow you to work in all weather conditions.
Technical specifications and information
Carrier frequency
24,150 GHz
Viewing angle
120º
Operating range
0,5 … 250 м
Angle estimation accuracy
1°
Accuracy of speed estimation
±0,4 км/ч
Power of emitted signal
10 dBm max
Interfaces
Ethernet, PoE
Dimensions
177 × 54 × 192 мм
Weight
2 кг
Operating temperature range
-45 … +85 ºС
For developers
Software Development Kit
The SDK for CPRR24 allows you to integrate sensor data into your applications with just a few lines of code. The programming language is C++.
Two usage examples:
SDK → https://gitlab.com/cognitivepilot/cprr-sdk
Two usage examples:
- as a console application
- Integration in GUI applications
- Linux (Arch, Ubuntu)
- Windows
SDK → https://gitlab.com/cognitivepilot/cprr-sdk
Documentation

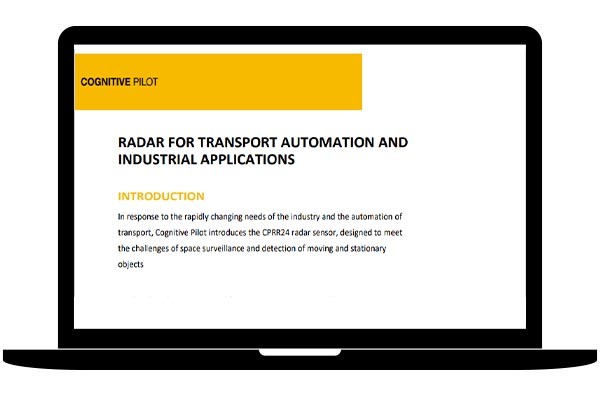

Detailed description → https://cognitivepilot.com/WP_CPRR24_en.pdf
Technical specifications → https://cognitivepilot.com/One_page_CPRR24_eng.pdf
User guide → https://cognitivepilot.com/CPRR_User_Manual _eng.pdf
Technical specifications → https://cognitivepilot.com/One_page_CPRR24_eng.pdf
User guide → https://cognitivepilot.com/CPRR_User_Manual _eng.pdf
Radar and technical vision —
A new level of performance
A new level of performance
Technology
Power-Over-Ethernet
Power-Over-Ethernet
Standard network equipment, cameras and radars with PoE allow you to build a complex control of monitored areas 24/7 in all weathers.
Combined perception of the surroundings with the overlay of radar detections on the image from the cameras.
Integration of radar with a camera in a traffic scene analysis system
Radar complex with camera
Applications
Perimeter Security
Perimeter security and protection against unauthorized access in all visibility conditions, in all weather, 24/7
Regulatory facilities
Airports and seaports, power plants, water treatment facilities
Industrial facilities and risk areas
Railroad stations and tracks, oil and gas facilities, factories, trading and transport companies, warehouses
Civil facilities
Private households and farms, commercial warehouses
Passenger transport
Buses, trolleybuses, shuttles
Rail transport
Trams, trains, subway trains, shunting locomotives
Trucks and special vehicles
Trucks for construction work and transportation, tractors, bulldozers, loaders, construction equipment
Mining industry
Mining dump trucks, rock loaders, drilling rigs
Example of use
on transport
on transport
Radar is the ideal tool for precise situational awareness in active vehicle safety systems in any visibility conditions and in any weather.
Example of use
for perimeter security
for perimeter security
Radar is the ideal tool for obtaining accurate environmental information
in perimeter security monitoring and industrial automation systems.
In all visibility conditions, in all weather, 24/7.
in perimeter security monitoring and industrial automation systems.
In all visibility conditions, in all weather, 24/7.
